Product description

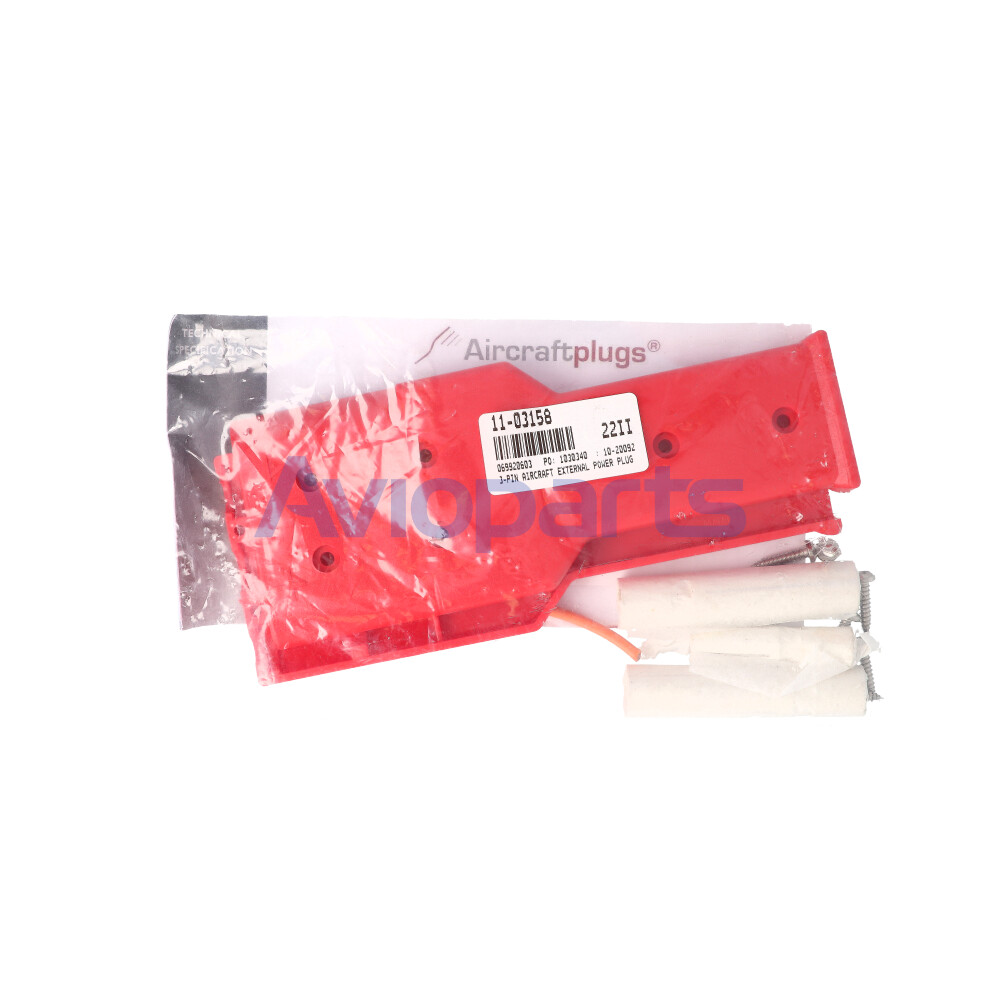

Standard 3-pin female plug for external 12-28 VDC power to airframe, equivalent to NATO AN2551 plug. Red polycarbonate construction screws together in minutes. Contact sleeves are solid copper, silver-plated ready for torch-soldering.

Includes solenoid activation pin. Corrosion proof. Mates with AN2552-3A or MS3506-1 external power receptacle.


Specifications
- Mates with standard AN2552-3A external power receptacle
- Performance and dimensions to ISO 461 (BS4G173:1985) and appropriate MOD (Air) and NSN Standards , (0.7 kg)
- Recommended wires gauge: up to 2/0 AWG stranded.
- 240A continuous, 1500A peak (solenoid trigger contact 35A continuous)
